ssd1306.c File Reference

implementations of functions for setting up, interacting with and sending commands to an ssd1306 driven screen via spi or i2c More...

#include <string.h>
#include "freertos/FreeRTOS.h"
#include "freertos/task.h"
#include "esp_log.h"
#include "ssd1306.h"
#include "font8x8_basic.h"
#include "font8x8_readable.h"
#include "font8x8_readable_thin.h"
#include "font8x8_space.h"

Include dependency graph for ssd1306.c:

Go to the source code of this file.

Macros
#define	tag   CONFIG_SSD1306_TAG
	tag for logging library More...

Functions
void	ssd1306_init (SSD1306_t *dev)
void	ssd1306_deinit (SSD1306_t *dev)
void	ssd1306_display_text (SSD1306_t *dev, int page, char *text, int text_len, bool invert)
void	ssd1306_wrapped_display_text (SSD1306_t *dev, int line, char *text)
void	ssd1306_display_image (SSD1306_t *dev, int page, int seg, uint8_t *images, int width)
void	ssd1306_clear_screen (SSD1306_t *dev, bool invert)
void	ssd1306_clear_line (SSD1306_t *dev, int page, bool invert)
void	ssd1306_contrast (SSD1306_t *dev, int contrast)
void	ssd1306_software_scroll (SSD1306_t *dev, int start, int end)
void	ssd1306_scroll_text (SSD1306_t *dev, char *text, int text_len, bool invert)
void	ssd1306_scroll_clear (SSD1306_t *dev)
void	ssd1306_hardware_scroll (SSD1306_t *dev, ssd1306_scroll_type_t scroll)
void	ssd1306_hardware_scroll_line (SSD1306_t *dev, int page, ssd1306_scroll_type_t scroll)
void	ssd1306_invert (uint8_t *buf, size_t blen)
void	ssd1306_flip (uint8_t *buf, size_t blen)
uint8_t	ssd1306_rotate (uint8_t ch1)
void	ssd1306_fadeout (SSD1306_t *dev)
void	ssd1306_dump (SSD1306_t dev)

Variables
int	center
int	top
int	bottom
	positions for oled More...

Detailed Description

implementations of functions for setting up, interacting with and sending commands to an ssd1306 driven screen via spi or i2c

Definition in file ssd1306.c.

Macro Definition Documentation

tag

#define tag   CONFIG_SSD1306_TAG

tag for logging library

Definition at line 46 of file ssd1306.c.

Function Documentation

ssd1306_clear_line()

void ssd1306_clear_line	(	SSD1306_t *	dev,
		int	page,
		bool	invert
	)

clear a specific line (fills the line with spaces)

Parameters

dev	the screen device to interact with
page	the line to clear
invert	whether or not the cleared line should be inverted

Definition at line 190 of file ssd1306.c.

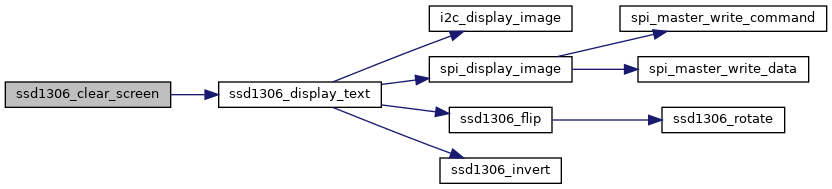

Here is the call graph for this function:

Here is the caller graph for this function:

ssd1306_clear_screen()

void ssd1306_clear_screen	(	SSD1306_t *	dev,
		bool	invert
	)

clear the screen (fills the screen with spaces)

Parameters

dev	the screen device to interact with
invert	whether or not the cleared screen should be inverted

Definition at line 175 of file ssd1306.c.

Here is the call graph for this function:

Here is the caller graph for this function:

ssd1306_contrast()

void ssd1306_contrast	(	SSD1306_t *	dev,
		int	contrast
	)

set the contrast of the screen

Parameters

dev	the screen device to interact with
contrast	the level of contrast

Definition at line 201 of file ssd1306.c.

Here is the call graph for this function:

Here is the caller graph for this function:

ssd1306_deinit()

void ssd1306_deinit

(

SSD1306_t *

dev

)

de-initialise the screen device and free resources

Todo:

make sure to free more resources and de-init the actual spi/i2c session

Todo:

Definition at line 100 of file ssd1306.c.

Here is the caller graph for this function:

ssd1306_display_image()

void ssd1306_display_image	(	SSD1306_t *	dev,
		int	page,
		int	seg,
		uint8_t *	images,
		int	width
	)

display an image on the screen

Parameters

dev	the screen device to interact with
page	the line to display the image on
seg	the segment of the image
images	the image data to display
width	the width of the image

Definition at line 159 of file ssd1306.c.

Here is the call graph for this function:

Here is the caller graph for this function:

ssd1306_display_text()

void ssd1306_display_text	(	SSD1306_t *	dev,
		int	page,
		char *	text,
		int	text_len,
		bool	invert
	)

display some text on the screen

Parameters

dev	the screen device to interact with
page	the line to display the text on
text	the text data
text_len	the text length
invert	whether or not to invert the text and background colours

Definition at line 112 of file ssd1306.c.

Here is the call graph for this function:

Here is the caller graph for this function:

ssd1306_dump()

void ssd1306_dump

(

SSD1306_t

dev

)

dump the screen data

Parameters

dev	the screen device to interact with

Definition at line 449 of file ssd1306.c.

ssd1306_fadeout()

void ssd1306_fadeout

(

SSD1306_t *

dev

)

fadeout the screen

Parameters

dev	the screen device to interact with

Definition at line 412 of file ssd1306.c.

Here is the call graph for this function:

ssd1306_flip()

void ssd1306_flip	(	uint8_t *	buf,
		size_t	blen
	)

flip a buffer of data

Parameters

buf	buffer to flip
blen	the length of the buffer

Definition at line 383 of file ssd1306.c.

Here is the call graph for this function:

Here is the caller graph for this function:

ssd1306_hardware_scroll()

void ssd1306_hardware_scroll	(	SSD1306_t *	dev,
		ssd1306_scroll_type_t	scroll
	)

start scrolling the screen via hardware

Parameters

dev	the screen device to interact with
scroll	the direction of the scroll

Definition at line 334 of file ssd1306.c.

Here is the call graph for this function:

ssd1306_hardware_scroll_line()

void ssd1306_hardware_scroll_line	(	SSD1306_t *	dev,
		int	page,
		ssd1306_scroll_type_t	scroll
	)

start scrolling the screen via hardware

Parameters

dev	the screen device to interact with
page	the specific page to scroll
scroll	the direction of the scroll

Definition at line 351 of file ssd1306.c.

Here is the call graph for this function:

ssd1306_init()

void ssd1306_init

(

SSD1306_t *

dev

)

initialise the screen device

Definition at line 53 of file ssd1306.c.

Here is the call graph for this function:

Here is the caller graph for this function:

ssd1306_invert()

void ssd1306_invert	(	uint8_t *	buf,
		size_t	blen
	)

invert a buffer of data

Parameters

buf	buffer to invert
blen	the length of the buffer

Definition at line 367 of file ssd1306.c.

Here is the caller graph for this function:

ssd1306_rotate()

uint8_t ssd1306_rotate

(

uint8_t

ch1

)

rotate a buffer of data

Parameters

buf	buffer to rotate
blen	the length of the buffer

Definition at line 398 of file ssd1306.c.

Here is the caller graph for this function:

ssd1306_scroll_clear()

void ssd1306_scroll_clear

(

SSD1306_t *

dev

)

stop scrolling the screen via software

Parameters

dev	the screen device to interact with

Definition at line 311 of file ssd1306.c.

Here is the call graph for this function:

ssd1306_scroll_text()

void ssd1306_scroll_text	(	SSD1306_t *	dev,
		char *	text,
		int	text_len,
		bool	invert
	)

display some scrolling text on the screen

Parameters

dev	the screen device to interact with
text	the text data
text_len	the text length
invert	whether or not the scrolling text should be inverted

Definition at line 251 of file ssd1306.c.

Here is the call graph for this function:

ssd1306_software_scroll()

void ssd1306_software_scroll	(	SSD1306_t *	dev,
		int	start,
		int	end
	)

start scrolling the screen via software

Parameters

dev	the screen device to interact with
start	the start of the scroll
end	the end of the scroll

Definition at line 218 of file ssd1306.c.

ssd1306_wrapped_display_text()

void ssd1306_wrapped_display_text	(	SSD1306_t *	dev,
		int	line,
		char *	text
	)

display some text on the screen

Parameters

dev	the screen device to interact with
line	the line to display the text on
text	the text data

Definition at line 146 of file ssd1306.c.

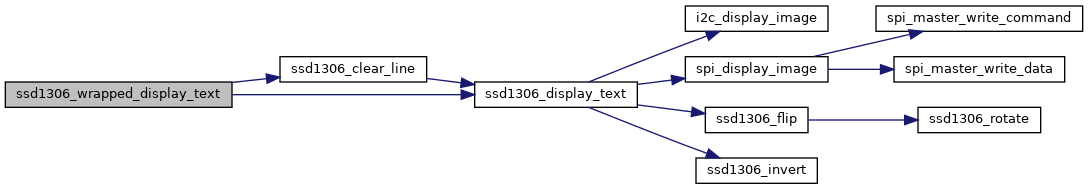

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

bottom

int bottom

positions for oled

Definition at line 48 of file ssd1306.c.

center

int center

Definition at line 48 of file ssd1306.c.

top

int top

Definition at line 48 of file ssd1306.c.
